Innovative Products Make Innovative Projects
创新产品 创意建筑

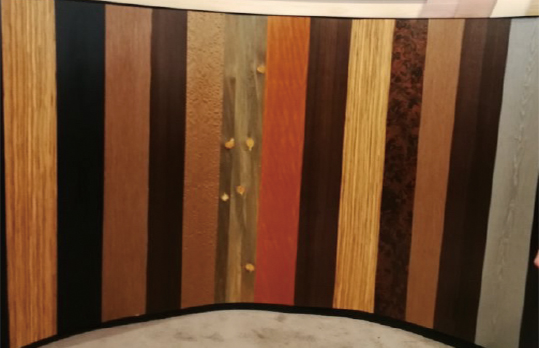

COLOURS
KB-01
KB-02
KB-04
KB-06
KB-07
KC-01
KC-03
KC-05
KC-06
KW-05
KW-07
KW-08
KW-09
KW-11
KW-11
KW-13
KW-14
KW-18
nnw01
nnw06
KC-04
SOLUTION
运用独特的工艺和技术,使产品具备防火B1、B2,甲醛E0、E1,并具备表面耐磨耐刮等特性。
主要应用于公共及教育建筑,商业建筑,工业建筑室内墙面,吊顶 , 高端家具,橱柜,门板。
By using unique process and technology, the product has the characteristics of fire prevention B1, B2, formaldehyde E0, E1, and surface abrasion resistance and scratch resistance.
Mainly used in public and educational buildings, commercial buildings, industrial buildings, indoor walls, ceiling, high-end furniture, cabinets, door panels.
Natural Beauty of Real Wood, Durability of Exterior Phenolic
ComWood® standard is available from stock in 1220mm) x 2440mm x 6/8/10mmthick sheets. Other thicknesses could be customized.The grain on all standard sheets runs in he direction of the length. All dimensions are nominal.
Standard Panel Dimension
Length: 1220mm
Width : 2440mm
Thickness: 6/8/10/12mm
Panel Tolerances
Length: +/-5.00mm
Width : +/-5.00mm
Thickness: +/-0.05mm

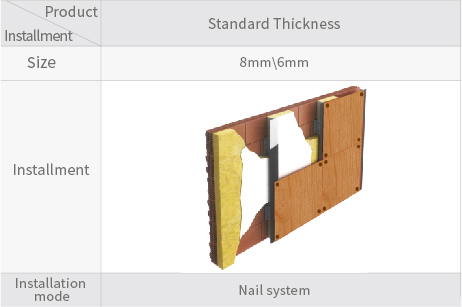

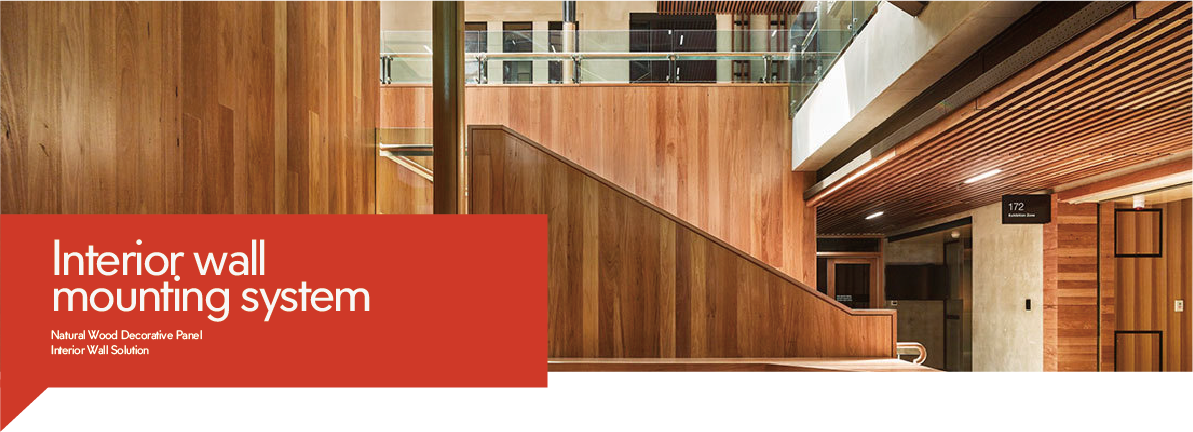

Installation Guide
克姆伍德-内墙安装系统

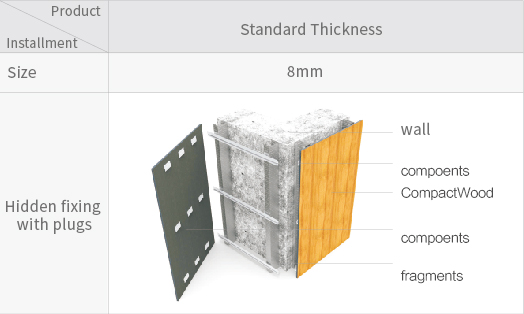

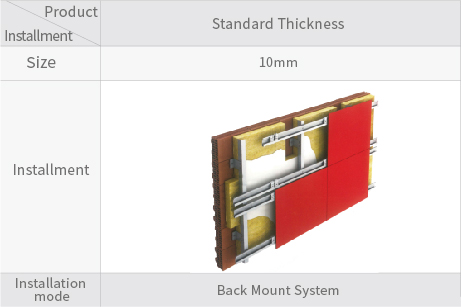

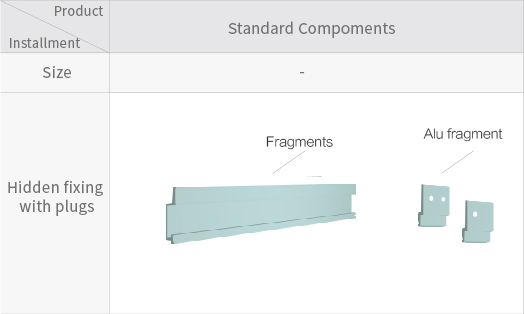

背挂系统 BACK HANGNG

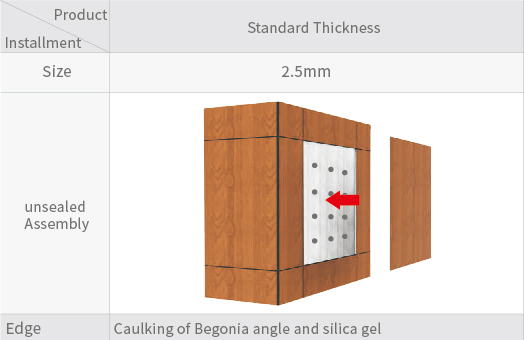

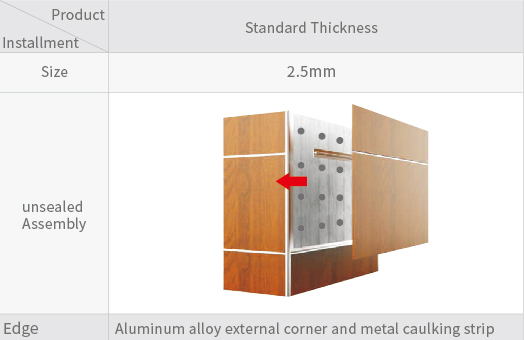

粘贴系统 PASTE SYSTEM

备注:note:粘贴工艺不适合应用于外墙The paste install is not suitable for the exterior wall

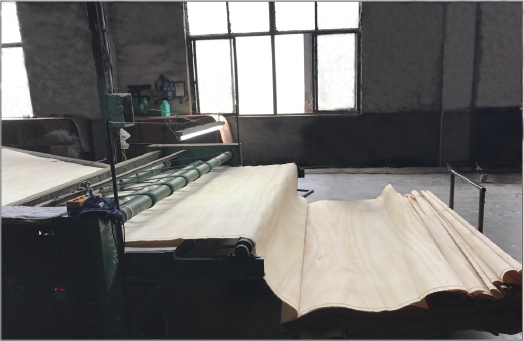

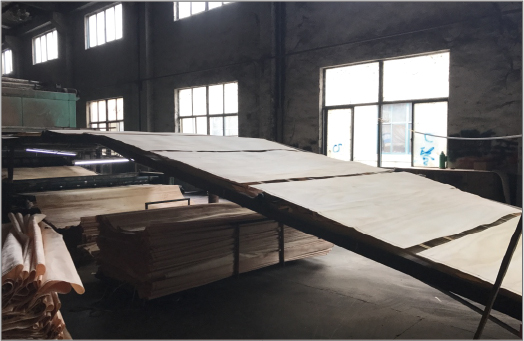

Wood veneer production process
木皮生产工艺
木皮纹理出现大山纹。 更自然、更优雅、更美观。

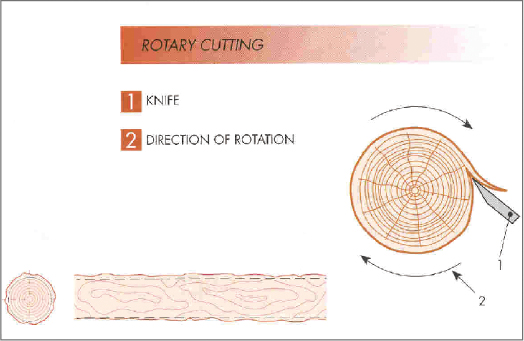

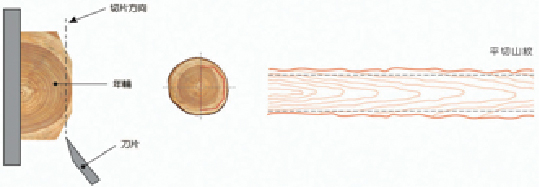

旋转法 ROTARY PROCESS

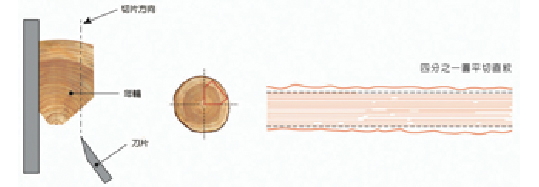

平切法 THE METHOD OF CUTTING
木皮可刨切出小山纹
木皮可刨切出直纹
直纹拼接,也可进行山直纹混拼
任意定制搭配
Comparison table of natural wood leather resin board products with traditional resin board
天然木皮树脂板产品与传统树脂板比较表
item real wood Phenolic Panel Traditional panel
产品结构structure 0.7mm real wood veneer + Phenolic MDF/HDF
表面surface Real wood veneer Decorate paper
防水impervious to water withstands 48 hours in boiling water Not resistant to humidity. It is easy to be layered or powdered or moldy after damp
自洁性 selfclean clean with water, no dirty stain dirty with rain
强度hardness resistant of strong hit Easy broken
防火fire rated B1 no fire proof
环保[词典]environmental protection E0 no
使用寿命 usage more than 50y 5y

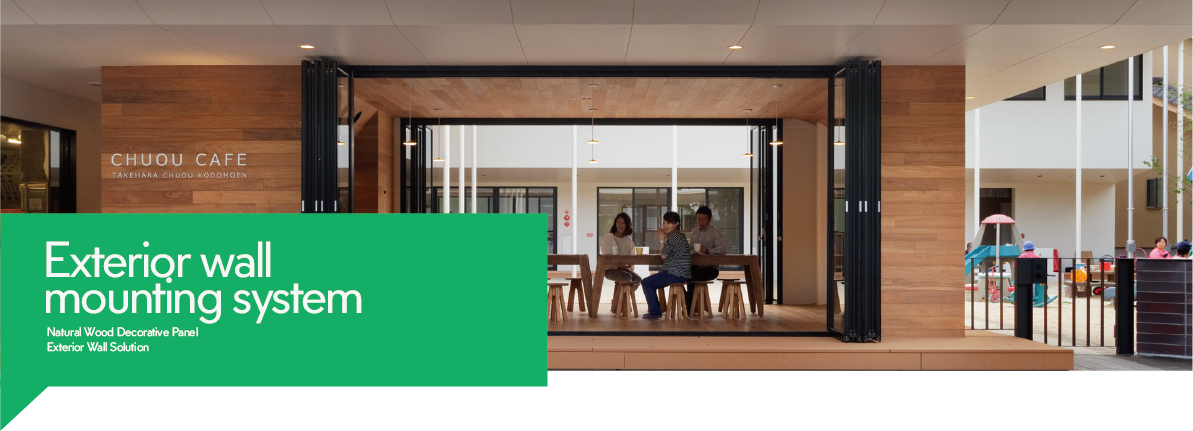

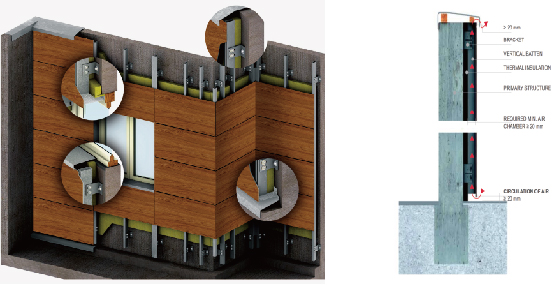

Installation Guide

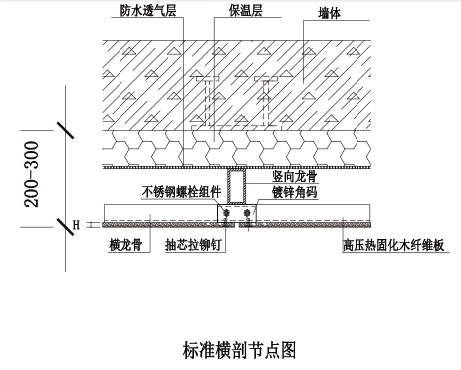

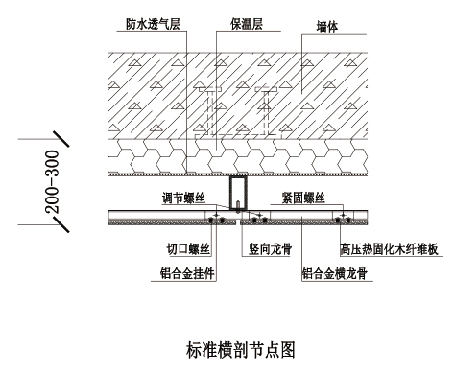

克姆伍德-外墙安装系统

安全可靠,保温节能;轻质高强,安装便捷。

通风雨幕系统——最适克姆伍德的幕墙系统。

克姆伍德外墙板是一种可持续和可回收的建筑材料,配合通风雨幕系统,既能节能降耗,又能成就高贵典雅的绿色建筑。


Comparison table of natural wood leather resin board products with traditional resin board
天然木皮树脂板产品与传统树脂板比较表
item real wood Phenolic Panel Traditional panel
产品结构structure 0.7mm real wood veneer + Phenolic MDF/HDF
表面surface Real wood veneer Decorate paper
防水impervious to water withstands 48 hours in boiling water Not resistant to humidity. It is easy to be layered or powdered or moldy after damp
自洁性 selfclean clean with water, no dirty stain dirty with rain
强度hardness resistant of strong hit Easy broken
防火fire rated B1 no fire proof
环保[词典]environmental protection E0 no
使用寿命 usage more than 50y 5y
Wood veneer production process
木皮生产工艺
木皮纹理出现大山纹。 更自然、更优雅、更美观。
旋转法 ROTARY PROCESS
平切法 THE METHOD OF CUTTING
木皮可刨切出小山纹
木皮可刨切出直纹
直纹拼接,也可进行山直纹混拼
任意定制搭配
BOUNDLESS CREATIVITY
